HSAD-300

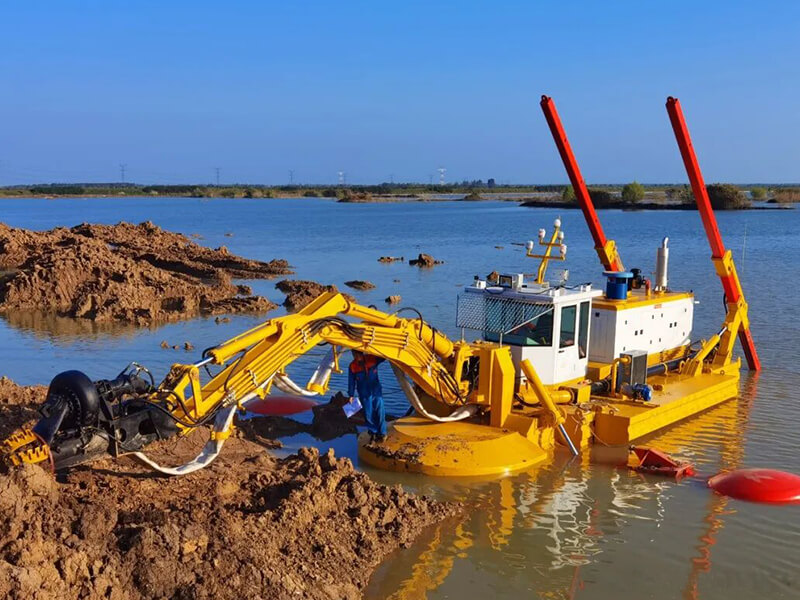

HSAD-300 Amphibious Multipurpose Dredger

A high-performance amphibious dredger built for demanding dredging and environmental engineering projects.

Whatsapp us

Get A Quote

6.5 m

Working Depth

800 m³/h

Max Dredging Depth

264 kW

Cummins Engine

Amphibious

Operation

Overview

High-Capacity Amphibious Dredging for Large Projects

The HSAD-300 delivers greater dredging capacity and hydraulic performance for large-scale amphibious operations. Combining self-propelled mobility with versatile working attachments, it provides reliable solutions for river maintenance, mining ponds and flood control projects.

Higher dredging productivity
800 m³/h pump capacity
Powerful hydraulic system
Stable amphibious platform
Customizable working attachments

Technical Specifications

HSAD-300 Detailed Parameters

Click each group to expand the full specification details.

Dimensions

DIMENSIONS	HSAD-200
Transport length (with boom)	Approx. 16 m
Length of pontoon	12.0 m
Breadth of pontoons	3.36 m
Max. dredging depth	6.5 m
Max backhoe dredging depth underwater	5.35 m

MAIN DIESEL ENGINE

MAIN DIESEL ENGINE	VALUES
Manufacturer	Cummins
Power/RMP	264KW/2200RMP
Electricity system voltage	/
F.O. Tank Capacity	1400L

HYDRAULIC SYSTEM

HYDRAULIC SYSTEM	VALUES
Manufacturer	Rexroth
Max working pressure	28 MPA
Stabilizer matching	Double Pump

Dredge Pump

Dredge Pump	VALUES
FLow	800m3 /h
Total head	45m
Water shaft power	110KW

Excavate Bucket Head

Excavate Bucket Head	VALUES
Slewing Angle	150°
Breakout force from bucket cylinder	83KN
Digging force from arm cylinder	47KN
Lifting capacity with max reach	22KN
