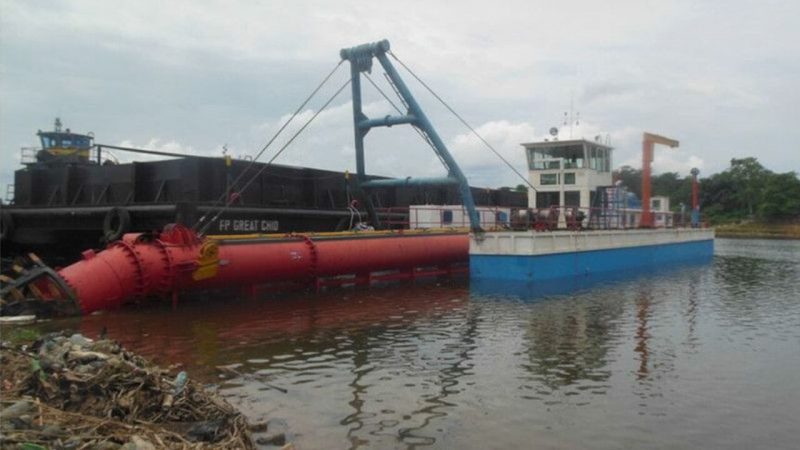

HS-30 Cutter Suction Dredger

DIMENSIONS HS-30
Length overall
Length over pontoons
Breadth
Depth
Inner Dia. of suction / discharging pipe
Max. dredging depth
Swing width with 35ºswing each side
Approx. 26 m
17.0m
5.8m
1.5m
325mm/300mm
10m
Approx. 25 m
DREDGE PUMP
Inner Dia. of inlet / outlet
Shaft power
300mm/250mm
360Kw
DIESEL ENGINE INSTALATION
Manufacturer
Main Engine Continuous service rating
Auxiliary Engine
Harbor Genset
Total specific fuel consumption
Weichai or Cummins
Approx. 456 kw
24kw

Approx. 76.8L/h
CUTTER
Type
Diameter
Power at shaft
Maximum speed
5 blade with 30 teeth
1.0m
60kw
30rpm
WINCHES
Ladder hoisting winch
Swing winch
Anchoring winch
1 set   4T
2 sets  4T
2 sets  2T
SPUDS
Diameter
Length
Hoisting cylinder
Spud carriage range
377mm
14m
2.0m
2.5m
