Product Overview:

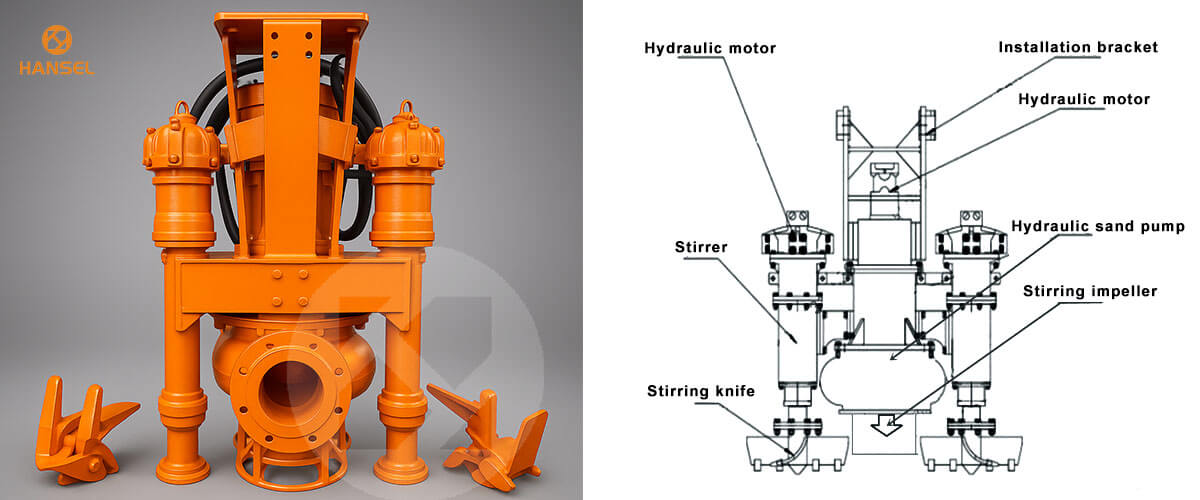

The hydraulic slurry pumps are new-type slag slurry pumps that draw on advanced foreign technologies. They are equipped with agitators and driven by a hydraulic system. After years of testing and improvement, they have been very maturely applied to various types of excavators. By using their own hydraulic systems, in situations where the silt, sediment, and sand are too thin for excavation and inconvenient for vehicle-mounted transportation, the hydraulic slag slurry pumps can be used to extract and achieve long-distance conveying operations. As an auxiliary device of excavators, it greatly improves work efficiency.

• Main Features:
  In addition to the agitator impeller on the pump body, hydraulic agitators and hydraulic augers can also be equipped; free transfer between work sites; high extraction concentration.
• Product Specifications:
  There are various specifications such as 4 inches, 6 inches, 8 inches, 10 inches, 12 inches, etc., which are suitable for multiple series of excavators of multiple brands such as Caterpillar, Volvo, Komatsu, Sany, etc.
• Product Applications:
  Widely applied to the desilting projects of inland river channels, the treatment of sediment in ports, the sand pumping in tailing ponds, ore dressing, etc.

Hydraulic Dredging Slurry Pump Selection:

• Determine the required head, flow rate, conveying distance, etc. according to the actual working conditions of the user.
• Consult the parameters of the excavator and clarify the parameters such as the displacement and pressure of the excavator’s hydraulic system.
• Select the model of the hydraulic motor accordingly.
• Calculate the actual output power of the excavator’s hydraulic system and select a suitable pump to be equipped.
