HSAD-200

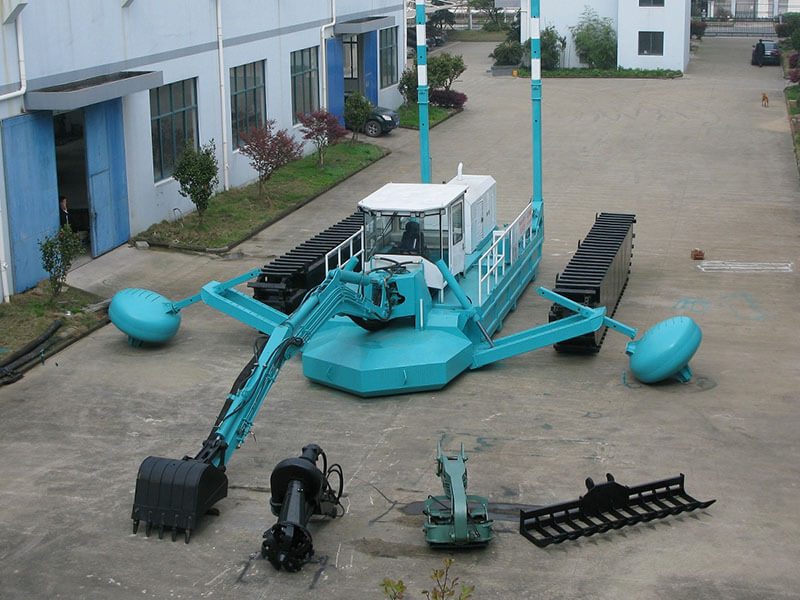

HSAD-200 Amphibious Multipurpose Dredger

A compact amphibious dredger engineered for wetlands, marshes, shallow rivers and environmental dredging projects.

Whatsapp us

Get A Quote

6 m

Working Depth

600 m³/h

Max Dredging Depth

194 kW

Cummins Engine

Amphibious

Operation

Overview

Compact Amphibious Dredging for Challenging Terrain

The HSAD-200 combines amphibious mobility and multipurpose functionality in one compact platform. Designed for wetlands, marshes and shallow waterways, it provides efficient dredging and excavation while reducing transportation and deployment costs.

Amphibious land-to-water operation
Compact transportable design
600 m³/h dredging capacity
Reliable Cummins power system
Multiple attachment options

Technical Specifications

HSAD-200 Detailed Parameters

Click each group to expand the full specification details.

Dimensions

DIMENSIONS	HSAD-200
Transport length (with boom)	Approx. 16 m
Length of pontoon	12.0 m
Breadth of pontoons	3.36 m
Max. dredging depth	6 m
Max backhoe dredging depth underwater	5.35 m

MAIN DIESEL ENGINE

MAIN DIESEL ENGINE	VALUES
Manufacturer	Cummins
Power/RMP	194KW/2200RMP
Electricity system voltage	24V
F.O. Tank Capacity	1000L

HYDRAULIC SYSTEM

HYDRAULIC SYSTEM	VALUES
Manufacturer	Rexroth
Max working pressure	25 MPA
Stabilizer matching	Double Pump

Dredge Pump

Dredge Pump	VALUES
FLow	600m3 /h
Total head	45m
Water shaft power	90KW

Excavate Bucket Head

Excavate Bucket Head	VALUES
Slewing Angle	180°
Breakout force from bucket cylinder	83KN
Digging force from arm cylinder	47KN
Lifting capacity with max reach	22KN
