HS-40 Series

Multi-Purpose Cutter Suction Dredge

Designed for diverse dredging applications, the HS-40 offers an ideal balance between production capacity, dredging depth and operational versatility.

36 m

Length Overall

14.0 m

Max Dredging Depth

450 mm

Suction Pipe I.D.

530kw

Pump Shaft Power

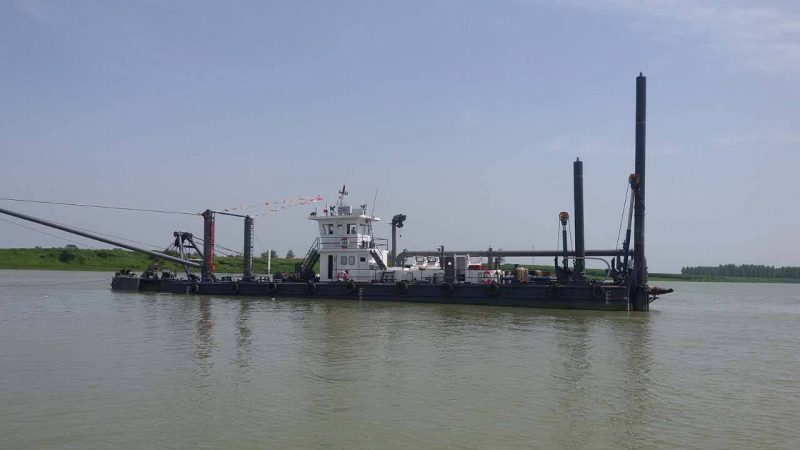

HS-40 Cutter Suction Dredger

Overview

Versatile Dredging Solution for River and Coastal Projects

The HS-40 cutter suction dredger is suitable for river maintenance, lake restoration and coastal dredging projects. With a maximum dredging depth of 14.0 m and larger pipeline capacity, it provides dependable performance for contractors seeking flexibility across multiple project types.

  • Balanced capacity and versatility
  • Suitable for river, lake and coastal projects
  • Increased dredging depth capability
  • Stable and efficient performance
  • Flexible customization options

Technical Specifications

HS-40 Detailed Parameters

Click each group to expand the full specification details.

Dimensions

DIMENSIONS HS-40
Length Overall Approx. 36 m
Length over Pontoons 25.0 m
Breadth 7.0 m
Depth 2.0 m
Suction / Discharge Pipe Dia. 450 mm / 400 mm
Max Dredging Depth 14.0 m
Swing Width (35° each side) Approx. 35 m

Diesel Engine Installation

DIESEL ENGINE INSTALATION VALUES
Manufacturer Weichai or Cummins
Main Engine (CSR) Approx. 601 kW
Auxiliary Engine 224kW
Harbor Genset 36kW
Specific Fuel Consumption Approx. 140 L/h

DREDGE PUMP VALUES
Inner Dia. of inlet 400 mm
Inner Dia. of outlet 350 mm
Shaft power 530 kW

WINCHES VALUES
Ladder hoisting winch 1 set, 6T
Swing winch 2 sets, 6T each
Anchoring winch 2 sets, 4T each



CUTTER VALUES
Type 5 blade with 30 teeth
Diameter 1.5 m
Power at shaft 130 kW
Maximum speed 30rpm

SPUDS VALUES
Diameter 530 mm
Length 18 m
Hoisting cylinder 2.2 m
Spud carriage range (optional) 2.5 m

Main Services

Complete Dredging Equipment & Spare Parts

HS55CSD
dredging hose01
cutter head and teeth-1
Dredge Pump

Applications

Where the HS-Series Performs Best

Suitable for rivers, lakes, canals, mining ponds and harbor dredging projects across various project scales.

River Dredging

Restore flow & remove silt

Lake Restoration

Eco-friendly desilting

Canal Maintenance

Shallow draft capability

Mining Ponds

Sand & gravel recovery

Port Approach

Small harbor deepening

HANSEL In Action

See Our Dredgers in Operation

Watch our dredgers, equipment and manufacturing processes in action.

Need an HS-40 Dredger for Your Project?

Tell us your dredging depth, soil condition and discharge distance. Our engineers will provide a tailored solution.
