Dredger Cutter Head
Different type of Cutter Head and Cutter teeth is suitable for different soil type and working conditions. HANSEL provides series of Cutter Heads for selection.
In addition, HANSEL can also manufacture the Cutter Head according to the drawings and technical requirements provided by the customer.

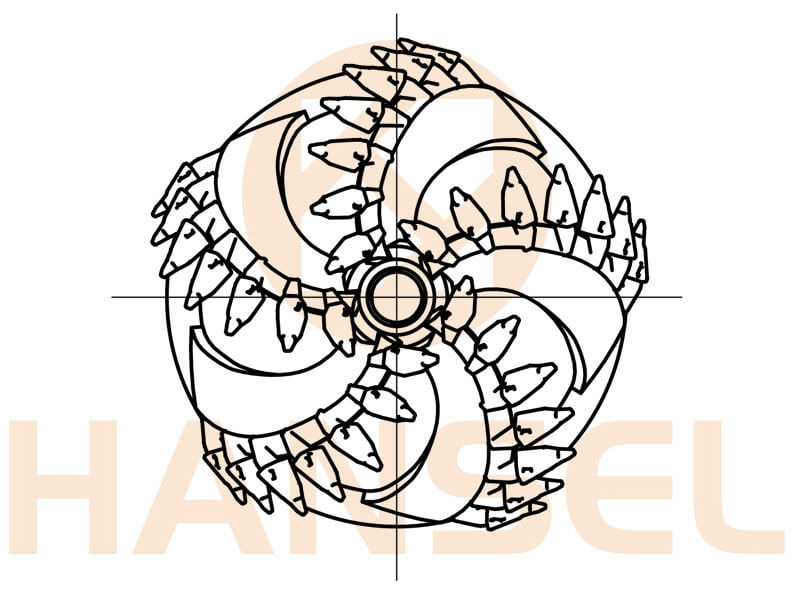

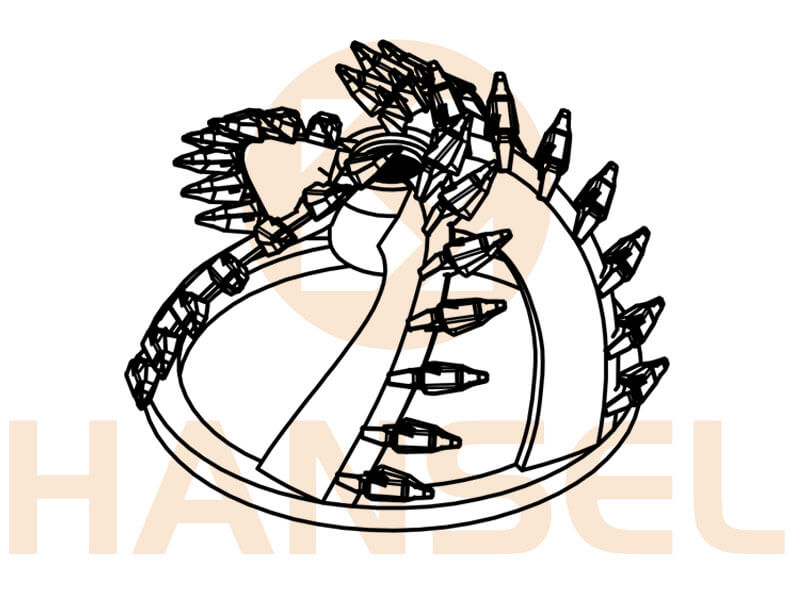

Crown Type Cutter
Crown Type Cutter
| Model | Max. Shaft Power（kW） | Outside Dia.（mm） | Max RPM | Blade No. |
| HS-CM-2400-750 | 750 | 2400 | 25 | 6 |
| HS-CM-2070-550 | 550 | 2070 | 25 | 5 |
| HS-CM-1800-450 | 450 | 1800 | 30 | 5 |
| HS-CM-1700-350 | 350 | 1700 | 30 | 5 |
| HS-CM-1600-270 | 270 | 1600 | 30 | 5 |
| HS-CM-1460-185 | 185 | 1460 | 30 | 5 |
| HS-CM-1250-130 | 130 | 1250 | 30 | 5 |
| HS-CM-1100-65 | 65 | 1100 | 30 | 5 |
| HS-CM-900-25 | 25 | 900 | 30 | 5 |
Wheel Type Cutter
Wheel Type Cutter
| Model | Max. Shaft Power（kW） | Diameter（mm） | Max RPM | Bucket No. |
| HS-WB-4200-450 | 450 | 4200 | 12 | 18 |
| HS-WB-3900-360 | 360 | 3800 | 13 | 18 |
| HS-WB-3600-320 | 320 | 3500 | 13 | 17 |
| HS-WB-3200-220 | 220 | 3200 | 15 | 15 |
| HS-WB-3000-170 | 170 | 3000 | 16 | 14 |
| HS-WB-2400-120 | 120 | 2400 | 18 | 14 |
| HS-WB-2000-75 | 75 | 2000 | 18 | 13 |
| HS-WB-1800-70 | 70 | 1800 | 18 | 13 |
